Дисковая вибрационная мельница
PULVERISETTE 9
Пожалуйста, обратите внимание: В стандартной комплектации дисковая вибрационная мельница PULVERISETTE 9 поставляется без размольных гарнитуров. Размольные гарнитуры предлагаются из 5 разных материалов и в 3 различных размерах с емкостью от 50 мл до 250 мл и могут быть заказаны как принадлежности.
FRITSCH также предлагает для PULVERISETTE 9 крепкие ролики с блокирующим тормозом.
Также поставляется практичный гидравлический таблеточный пресс с ручным управлением и усилием прессования 250 кН.

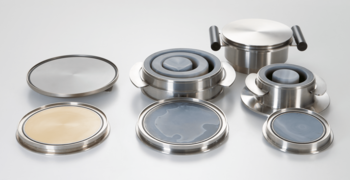

РАЗМОЛЬНЫЕ ГАРНИТУРЫ
-
Измельчающее тело и объемы
Объем Полезный объем (измельчаемый материал) Измельчающее тело 50 мл 10 - 50 мл 1 сердечник 100 мл 30 - 100 мл 1 сердечник + 1 кольцо 250 мл 75 - 250 мл 1 сердечник + 1 кольцо -
Данные по материалам размольных гарнитуров
Материал Основной компонент материала Плотность г/см³ Износостойкость Применение для измельчаемого материала закаленная нержавеющая сталь Fe - Cr 7,7 хорошо хрупкие, твердые пробы несодержащая хром инструментальная сталь Fe 7,8 условно хорошо хрупкие, твердые пробы Твердый сплав карбид вольфрама WC 14,3 очень хорошо очень твердые, абразивные пробы Агат SiO2 2,65 хорошо мягкие до среднетвердых, хрупкие волокнистые пробы Оксид циркония ZrO2 5,7 хорошо среднетвердые, хрупкие, волокнистые пробы, измельчение без металла
Выберите как минимум один размольный гарнитур. Размольные гарнитуры предлагаются из 5 разных материалов и в 3 различных размерах с емкостью от 50 мл до 250 мл. Материал размольного гарнитура должен при этом быть тверже, чем измельчаемый материал.

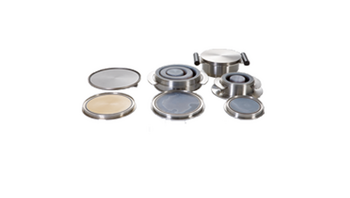

РАЗМОЛЬНЫЕ ГАРНИТУРЫ
For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
For the comminution of brittle, hard samples
General material specification:
Material: chromium-free tool steel -1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time
| General specifications | |
| Material | Chromium-free tool steel – 1.1740 |
| ISO/EN/DIN code | C60W3 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 98.63 – 98.08 |
| Carbon – C | 0.55 – 0.65 |
| Silicon – Si | 0.15 – 0.4 |
| Manganese – Mn | 0.6 – 0.8 |
| Phosphorus – P | < 0.035 |
| Sulphur – S | < 0.035 |
| Physical and mechanical properties | |
| Density | 7.8 g/cm³ |
| Hardness | 50 - 55 HRC |
Explanations on hardness data
For the comminution of brittle, hard samples
General material specification:
Material: chromium-free tool steel - 1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Chromium-free tool steel – 1.1740 |
| ISO/EN/DIN code | C60W3 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 98.63 – 98.08 |
| Carbon – C | 0.55 – 0.65 |
| Silicon – Si | 0.15 – 0.4 |
| Manganese – Mn | 0.6 – 0.8 |
| Phosphorus – P | < 0.035 |
| Sulphur – S | < 0.035 |
| Physical and mechanical properties | |
| Density | 7.8 g/cm³ |
| Hardness | 50 - 55 HRC |
Explanations on hardness data
For the comminution of brittle, hard samples
General material specification:
Material: chromium-free tool steel - 1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Chromium-free tool steel – 1.1740 |
| ISO/EN/DIN code | C60W3 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 98.63 – 98.08 |
| Carbon – C | 0.55 – 0.65 |
| Silicon – Si | 0.15 – 0.4 |
| Manganese – Mn | 0.6 – 0.8 |
| Phosphorus – P | < 0.035 |
| Sulphur – S | < 0.035 |
| Physical and mechanical properties | |
| Density | 7.8 g/cm³ |
| Hardness | 50 - 55 HRC |
Explanations on hardness data
For the comminution of very hard, abrasive samples
General material specification:
Material:hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
For the comminution of very hard, abrasive samples
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
For the comminution of very hard, abrasive samples
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
for comminution of soft to medium-hard, brittle, fibrous samples
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
for comminution of soft to medium-hard, brittle, fibrous samples
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc and never for hard-tough samples, such as metals.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Zirconium oxide – ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.5 |
| Yttrium oxide – Y2O3 | 5.1 |
| SiO2, CaO, MgO, Al2O3 | < 0.4 |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness | 12.5 x 10³ Nmm-² HV |
Explanations on hardness data
for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples, for metal-free grinding
Detailed information about the material you will find in the element analysis.
Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc. and never for hard-tough samples, such as metals.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
| General specifications | |
| Material | Zirconium oxide – ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.5 |
| Yttrium oxide – Y2O3 | 5.1 |
| SiO2, CaO, MgO, Al2O3 | < 0.4 |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness | 12.5 x 10³ Nmm-² HV |
Explanations on hardness data
ДОПОЛНИТЕЛЬНЫЕ ПРИНАДЛЕЖНОСТИ

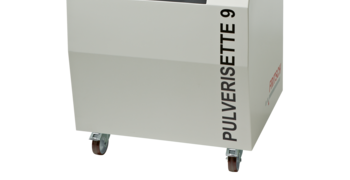

Крепкие ролики с блокирующими тормозами делают PULVERISETTE 9 передвижной.

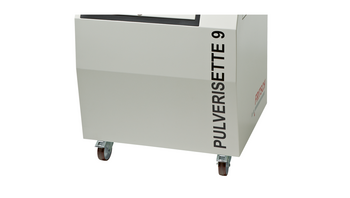

РОЛИКИ ДЛЯ ДИСКОВОЙ ВИБРАЦИОННОЙ МЕЛЬНИЦЫ
Go mobile with the Vibrating Cup Mill: Order
- robust wheels with arresting brake for your Vibrating Cup Mill
- 1 Set includes 4 heavy-duty wheels, 2 with arresting brake
Сертификация

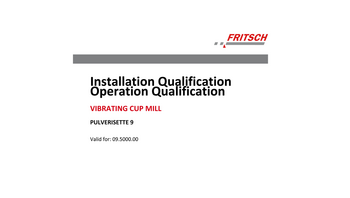

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibrating Cup Mill PULVERISETTE 9.

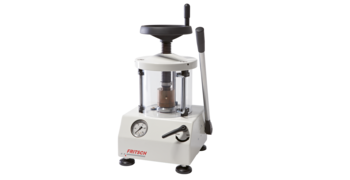

ТАБЛЕТОЧНЫЙ ПРЕСС
Идеален для высококачественных пресс-изделий. При помощи гидравлического таблеточного пресса с ручным управлением можно быстро и просто перерабатывать твердые пробы в стабильные и одновременно высоко-прозрачные для рентгенофлуоресцентного анализа или ИК-спектроскопии пресс-изделия.

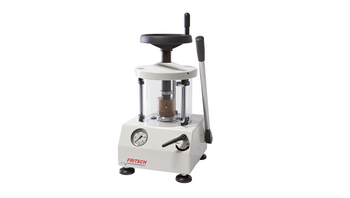

ТАБЛЕТОЧНЫЙ ПРЕСС
Ideal for high-quality pellets
The manually-operated hydraulic FRITSCH Pellet Press is ideal for fast and easy preparation of both: solid and highly permeable pellets of solid samples for X-ray fluorescence analysis or infrared spectroscopy. It's as easy as this: Fill in the sample, close the magnetically-held door and build-up the desired pressure using the hand lever - that's it. The pressure force is variable up to max. 250 kN and is automatically relieved in case of overstress. If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.
The pressing tools are not included with the pellet press and have to be ordered separately.
Further pressing tools and automatic pellet presses with a pressure force of 400 kN can be delivered on request.
ПРЕССОВОЧНЫЙ ИНCТРУМЕНТ для ТАБЛЕТОЧНЫЙ ПРЕСС 09.9510.00
Pressing tool for pellets with 40 mm diameter:
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.
Further pressing tools on request!
Pressing tool for pellets with 32 mm diameter.
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.
Further pressing tools on request!
